CNC Machining Centre
HOLZ-HER

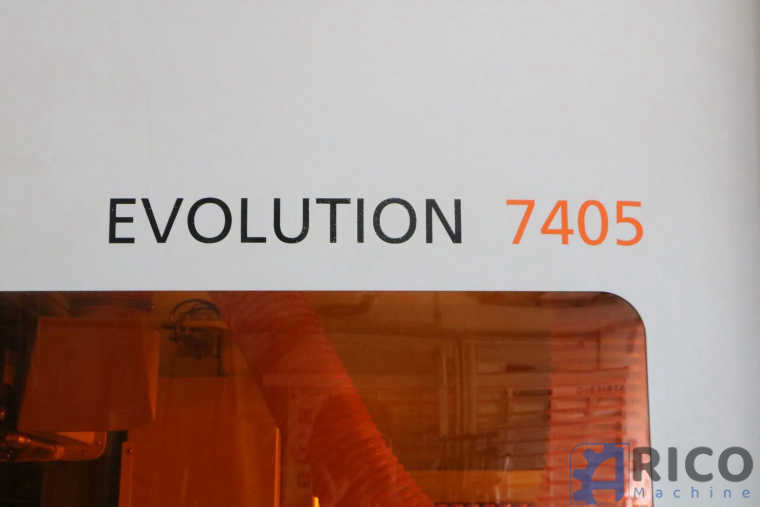

EVOLUTION 7405
Arico-ID
Baujahr
Preis
M-239180
41710 , Sevilla , AF
17900 €
Angaben zur Maschine:
Standort der Maschine:
Angaben zum Inserat:
Anbieter
CUT-Milling Solutions SL
Registriert seit: 2022
Anzahl der Online-Inserate: 15
Telefon
+34954732260
Mobil
+34954732260
CUT-Milling Solutions SL Ur Las Aguardienteras Centro 41710 Utrera Sevilla, Spain
Beschreibung:
X: min. 200mm / max. 3.200mm
Y: min 70mm / max 920mm
Z: min. 8mm / max. 70mm
Max. machining in X-direction without reclamping:
Milling / formatting minus cutter radius 1450 mm
for complete machining (milling, drilling, grooving) 1300 mm
max. machining in Y direction 920 mm
Connected load: 14 kW
operating pressure: 6,0bar
Printing requirement: ca.300 NL / min.
suction capacity:
milling unit: approx.1.400 m³/h
bottom left: approx. 1,400 m³/h
rear: approx. 1,900 m³/h
Drilling unit:
type 7883
Drive power 1.7 kW/50 Hz
Speed 1000 to 4400 rpm
Drilling spindle holder:
up to internal thread M10 with 11 mm fit,
max- length of drills 70mm
Direction of rotation left/right
Loading of the drilling unit:
Number of drills in Z direction 9,
Number of drills in X direction 5,
Number of drills in Y-direction 4,
max. drill diameter 35 mm, horizontal drills, double spindle in X direction 2 spindles,
Double spindle in Y direction 1 spindle, grid spacing 32 mm,
max. drill diameter 12 mm, integrated sawing unit, max. size of saw blade diameter 125 mm, mounting hole 20 mm, max. speed 1000 to 5650 rpm
